General Specifications

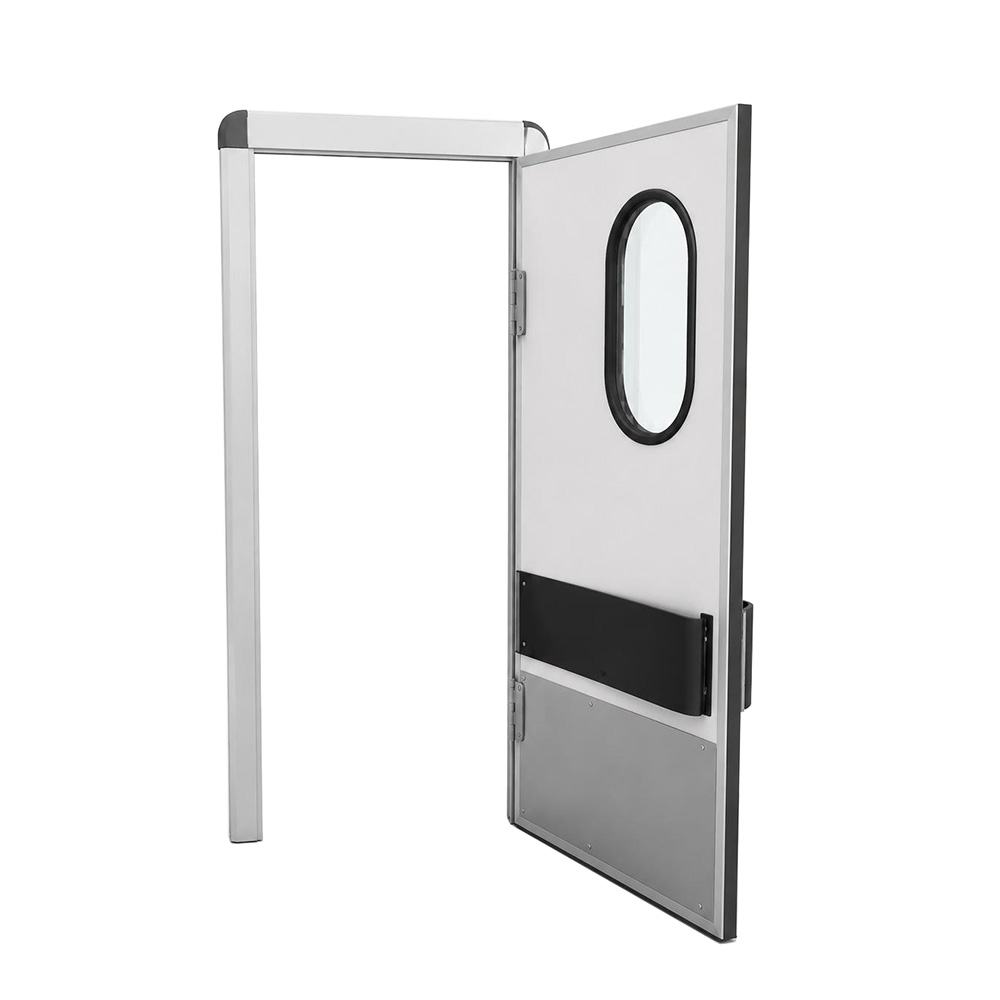

Our Cold Room Single Wing Service Doors are designed for rapid and convenient access between cold storage areas, ensuring smooth personnel and product movement while maintaining excellent thermal insulation.
• Ideal for high-traffic transition areas in commercial cold storage and industrial refrigeration facilities.
• Available in a single-wing configuration with installation options for both cold room panels and masonry walls.
• Standard 40 mm insulated door leaf provides excellent thermal performance and long-term durability.
• Double-action hinge system allows the door to open up to 180° in both directions for maximum operational efficiency.
• Door can remain in the open position when required, allowing uninterrupted traffic flow during loading and unloading operations.
• High-density polyurethane insulation minimizes heat transfer and improves overall energy efficiency.
• Manufactured to meet the specific dimensions and operational requirements of each project.
Technical Specifications
Door Frame
• Available in PVC or Aluminum configurations.
• Suitable for installation on insulated sandwich panels or masonry walls.
• Manufactured using high-quality anodized aluminum profiles.
Door Leaf
• Standard leaf thickness: 40 mm.
• High-density polyurethane insulation (42–45 kg/m³).
• Inner and outer sheet thickness: 0.50 mm.
• Standard surface finishes: Polyester, PVC, or Stainless Steel (CrNi).
• Standard color: RAL 9002.
• Flat surface design for hygienic and easy-to-clean applications.
Hardware & Features
• Double-action hinges enable 180° opening in both directions.
• Available with or without an insulated vision window.
• Special sealing system minimizes thermal loss during area transitions.
• Heavy-duty polyurethane handle for durability and user comfort.
• Stainless steel (CrNi) kick plate provides additional protection against impacts.

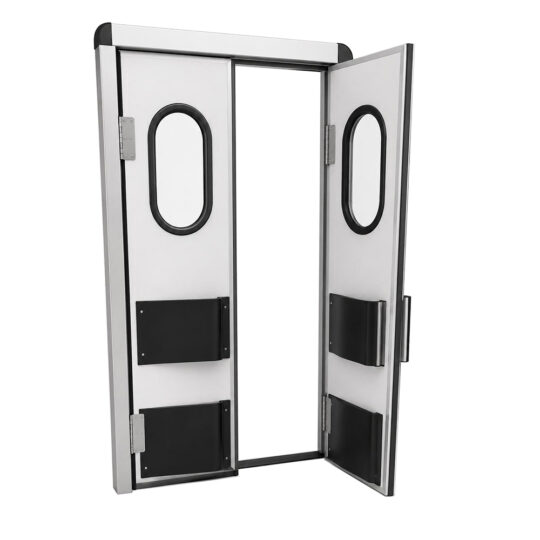

• Available in single-leaf or double-leaf configurations according to project requirements.
