General Specifications

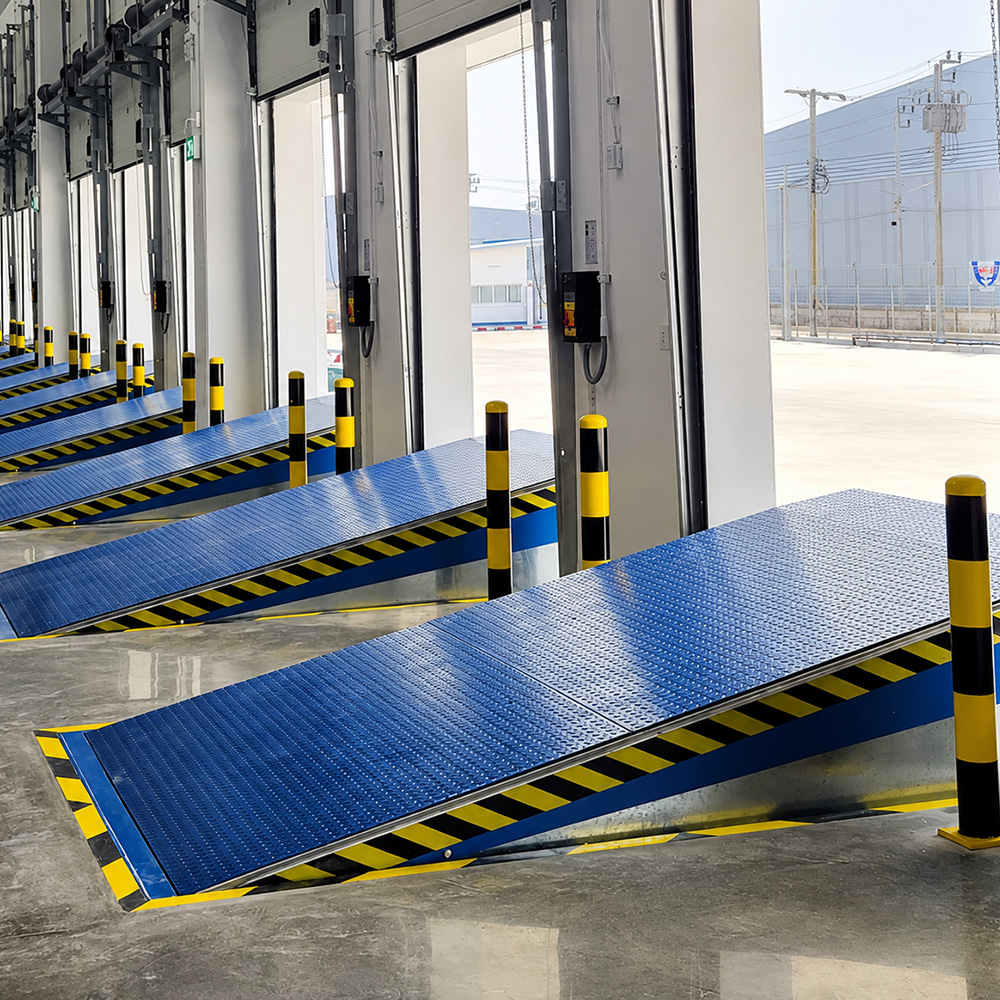

Our dock levelers are designed for intensive industrial loading operations where reliability, safety, and long service life are essential.
- Heavy-duty steel construction designed for continuous industrial use.
- Smooth electro-hydraulic operation for safe and efficient loading and unloading.
- Anti-slip checker plate platform to improve operator safety.
- Available with swing lip or telescopic lip configurations depending on loading requirements.
- Compatible with sectional overhead doors, dock shelters, dock bumpers, wheel guides, and vehicle restraint systems.
- Designed to minimize loading time while increasing operational efficiency.
- Suitable for warehouses, distribution centers, cold storage facilities, food production plants, pharmaceutical industries, and manufacturing facilities.
- Every dock leveler can be customized according to project requirements, truck dimensions, traffic frequency, and customer specifications.
Technical Specifications
| Feature | Specification |
|---|---|
| Operation | Electro-Hydraulic System |
| Installation Type | Pit Mounted |
| Platform Material | Heavy-Duty Steel Checker Plate |
| Dynamic Load Capacity | 6,000 – 15,000 kg (Custom Available) |
| Platform Width | 1,800 – 2,200 mm |
| Platform Length | 2,000 – 4,500 mm |
| Lip Type | Swing Lip / Telescopic Lip |
| Surface Finish | Powder Coated or Hot-Dip Galvanized (Optional) |
| Power Supply | 380V / 50Hz (Optional Voltages Available) |
| Safety Features | Emergency Stop, Maintenance Support, Anti-Free Fall Valve |
| Operating Temperature | Suitable for Industrial & Cold Storage Applications |
| Compliance | CE Standards |
| Optional Equipment | Dock Shelter, Dock Bumpers, Wheel Guides, Traffic Light System, Vehicle Restraint |
