General Specifications

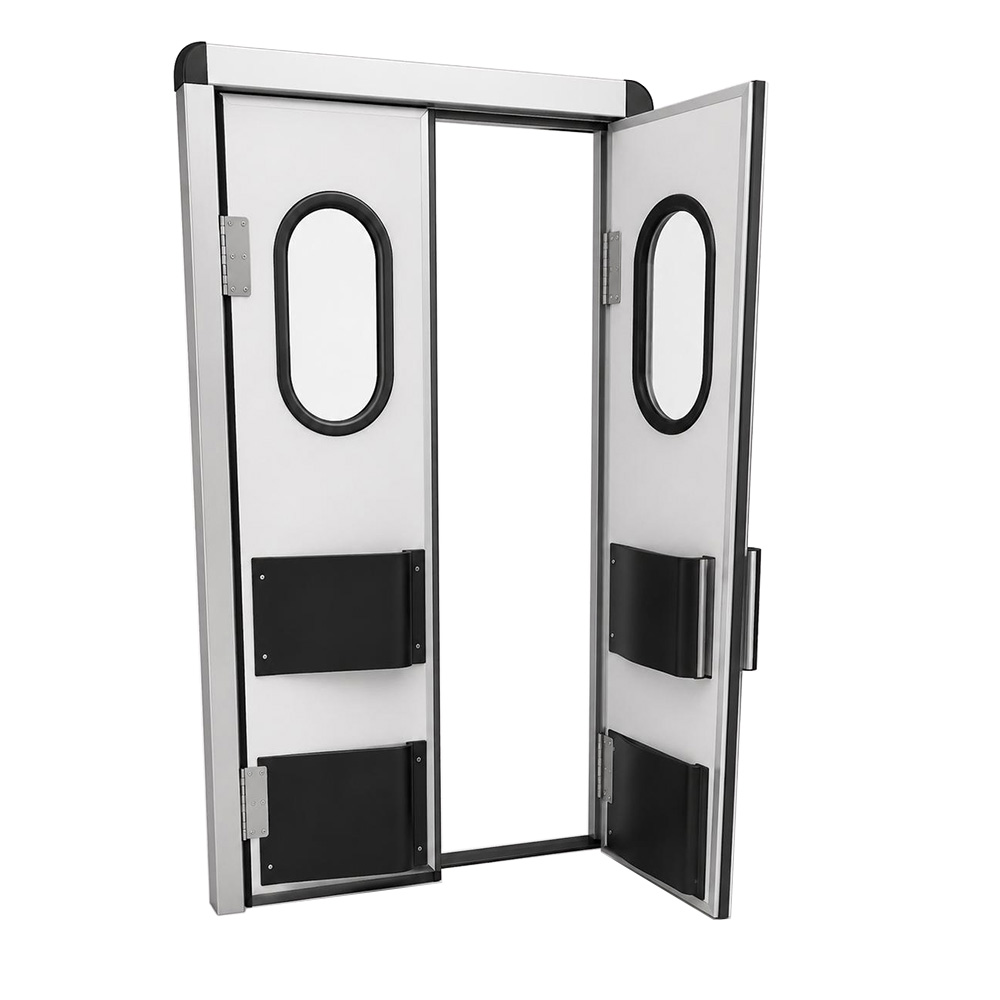

Our Cold Room Dual Wing Service Doors are engineered for high-traffic commercial cold storage facilities and industrial refrigeration applications, providing rapid access while maintaining excellent thermal insulation and operational efficiency.
• Ideal for areas requiring frequent movement of personnel, pallet trucks, carts, and products between temperature-controlled spaces.
• Dual-wing door configuration provides a wider clear opening for improved workflow and operational convenience.
• Suitable for installation on insulated sandwich panels or masonry walls.
• Standard 40 mm insulated door leaf delivers outstanding thermal performance and long-lasting durability.
• Double-action hinge system allows both door leaves to open up to 180° in either direction for smooth two-way traffic.
• Doors can remain in the open position when required, improving efficiency during loading, unloading, and material handling operations.
• High-density polyurethane insulation minimizes heat transfer and contributes to maximum energy efficiency.
• Manufactured to custom dimensions and project-specific requirements for commercial and industrial refrigeration facilities.
Technical Specifications
Door Frame
• Available in PVC or Aluminum configurations.
• Suitable for installation on insulated sandwich panels or masonry walls.
• Manufactured using high-quality anodized aluminum profiles.
Door Leaf
• Standard leaf thickness: 40 mm.
• High-density polyurethane insulation (42–45 kg/m³).
• Inner and outer sheet thickness: 0.50 mm.
• Standard surface finishes: Polyester, PVC, or Stainless Steel (CrNi).
• Standard color: RAL 9002.
• Flat surface design for hygienic, durable, and easy-to-clean applications.
Hardware & Features
• Heavy-duty double-action hinges provide smooth 180° opening in both directions.
• Available with or without an insulated vision window.
• High-performance sealing system minimizes thermal loss during area transitions.
• Durable polyurethane handles for comfortable daily operation.
• Stainless steel (CrNi) kick plates protect the door against impacts and heavy use.
• Available in single-wing or dual-wing configurations to meet specific project requirements.
